SINGLE POST LIFT

Product Code: VT-470

electon1warranty2
  • Delivery Included
  •  Installation Included
Description

Description

Art. 470

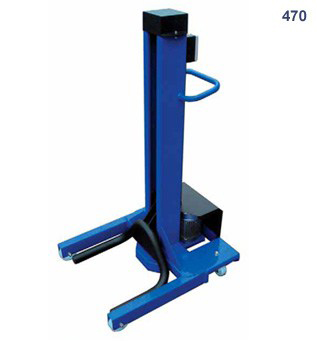

Electro-mechanical single post lift 1t.
  • Electric control with switch
  • Interchangeable holding device for wheel
  • Lifting system by worm:
    screw
    nut
    safety nut
Technical Spec

Technical Specifications

TECHNICAL DATES470
Capacityt 1
Maximal car weightt 2
Max. lifting heightmm 800
Time lifting/descentsec 35
MotorkW 2.2
Voltage single-phaseV/Hz 230/50
Weightkg 80
Optionals

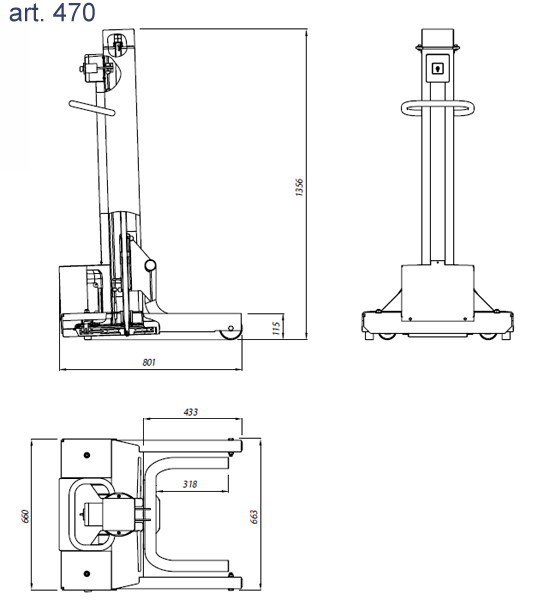

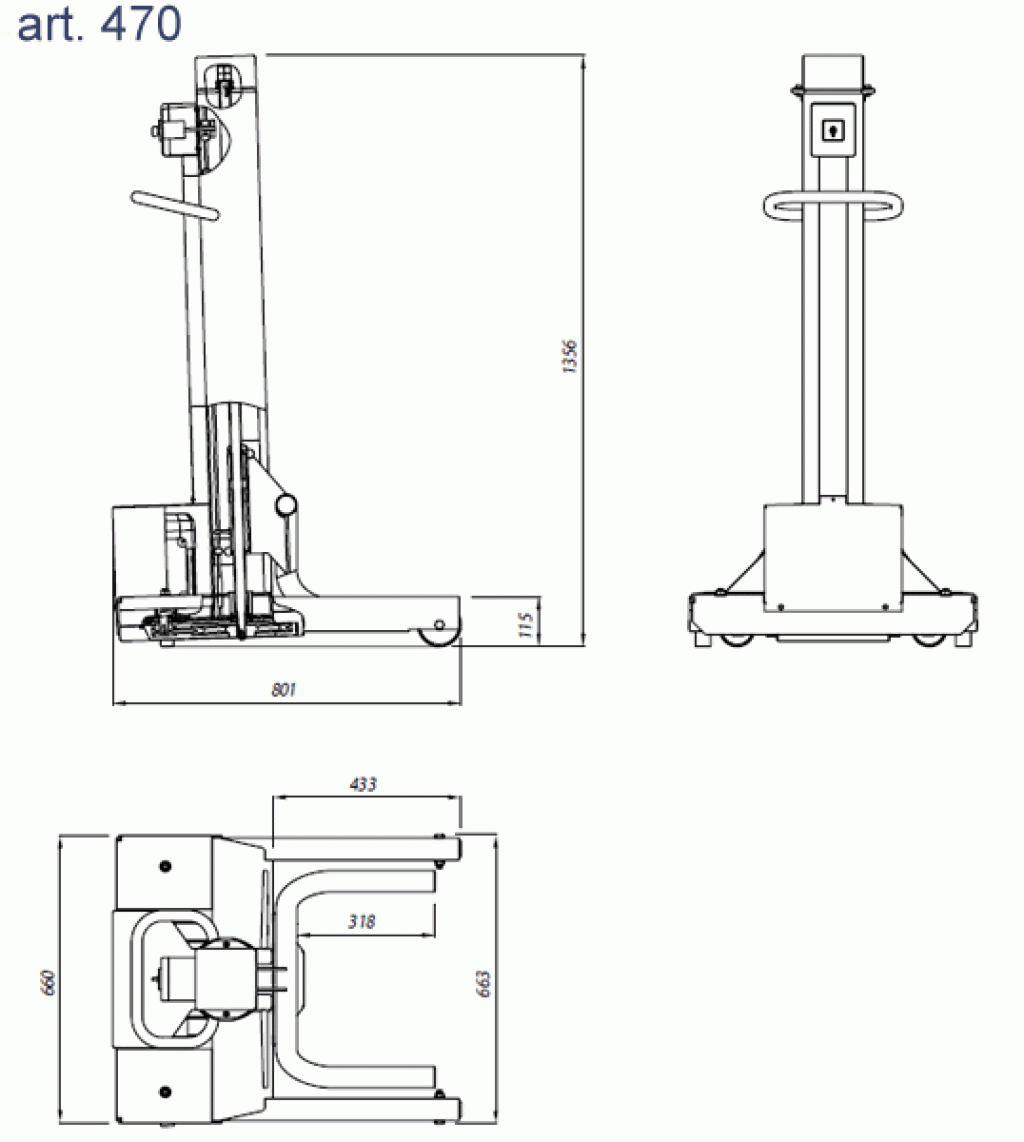

Drawings
Downloads
Product Inquiry
