537C SCISSOR LIFT (3 TONNES)

Product Code: VT-537C

electon3warranty2
  • Delivery Included
  •  Installation Included
Description

Description

Art. 537C
Electro-hydraulic, midraise scissors lift for tyre and car body shopsMINIMAL HEIGHT: 95 mm
Easy to drive-over even with low cars

  • Easy to handle drive-on and drive-off ramps
  • Hydraulically synchronized platforms
  • Overload safety-valve
  • Safety-valve in case of sudden loss of pressure
  • Automatic lowering control
  • “Deadman” controls 24V
  • Set of 4 rubber pads
  • Safety control on last descent segment
Technical Spec

Technical Specifications

TECHNICAL DATES537C
Capacityt 3
Lifting heightmm 930
Operating temperatureC° -10 +40
Liftingsec 30
Descentsec 35
Motorbar 1.1
Weightkg 500

The manufacturing Company reserves the right to make modifications to its machines at any time without notice.

Optionals

OPTIONALS

  • Set of wheels
  • Auxiliary drive on-/drive-off ramps

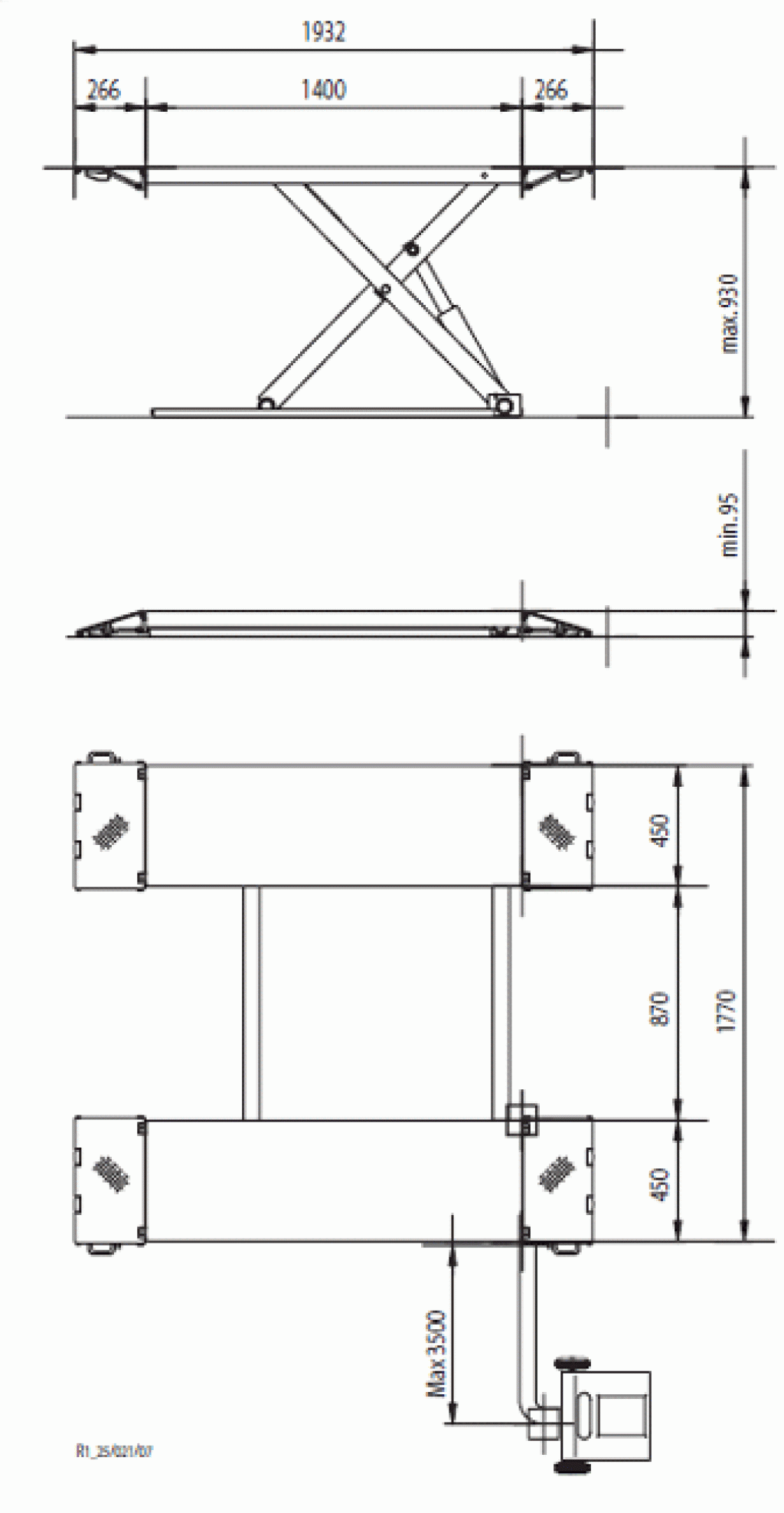

Drawings
Downloads
